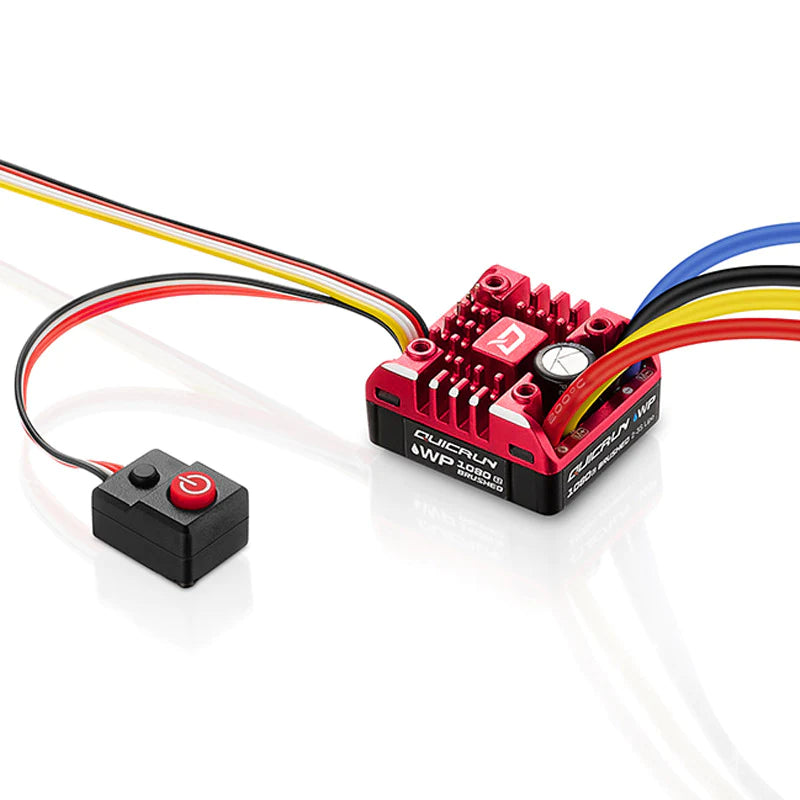

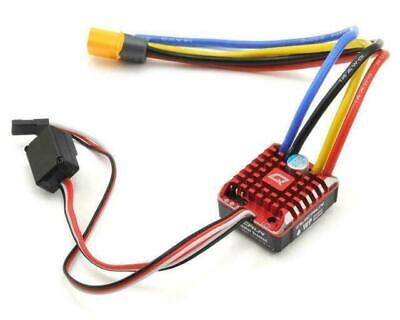

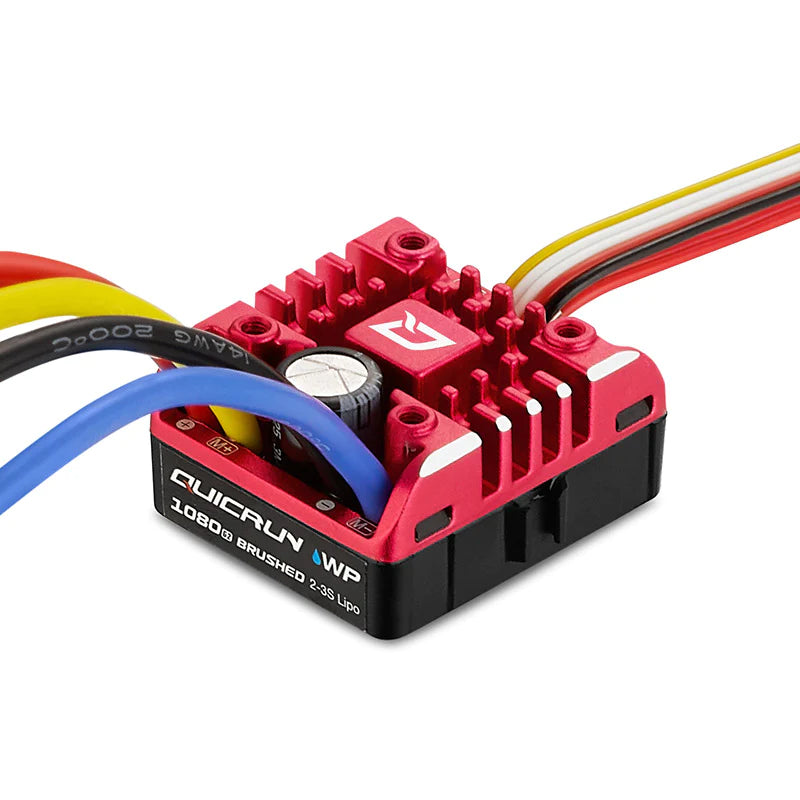

QUICRUN WP 1080 G2 brushed ESC (2-3S) [Hobbywing] 30112750
Great value esc! Water proof, and perfect for all around brushed cars!
Perfect for CRAWLERS!
Features
- Fully Water-proof and dust-proof, suitable for all-weather races.
- Small in size, with a built-in capacitor module.
- Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
- In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
- Real-Time Adjustment of Drag Braking Force.
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
- Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
-
WP-1080 G2 ESC VS WP-1080 (G1)
- BEC output can go up to 8.4V
- Real-Time Adjustment of Drag Braking Force.
- Real Car Mode
- New Aluminum case
Specification: QuicRun Brushed ESC series
| Brushed ESC | WP 1080 G2 | WP 1080 |
WP 1060
|
| p/n | 30120202 | 30112750 | 30120201 |
| Waterproof | Yes | Yes | Yes |
| Dual Mode | No | No | No |
|
Fwd Cont. / Peak
Rev Cont. / Peak
|
80A / 400A | 80A / 400A | 60A / 360A |
| Car Applicable | 1/10 Rock Crawler | 1/8 - 1/10 Rock Crawler and Tank or Boat | 1/10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank |
| Motor Limit | Brushed Motors 540/550 Series 2S LiPo or 5S NiMH 3S LiPo or 9S NiMH |
Brushed Motors
540/550/775 Series 2S LiPo or 6S NiMH: ≥10T or\RPM<3000@7.4V 3S LiPo or 9S NiMH: ≥16T or RPM<2000@7.4V |
Brushed motor 540 or 550 series 2S Lipo or 6 NiMH: T ≥12T or RPM<3000 @7.2V 3S Lipo or 9 NiMH: T≥18T or RPM< 2000 @7.2V |
| Battery | 2-3S LiPo or 5-9S NiMH | 2-3S LiPo or 5-9S NiMH | 2-3S Lipo or 5-9 NiMH |
| BEC Output | 6V/7.4V/8.4V @ 4A (switch-mode) | 6V/7.4V @ 3A (switch mode) |
2A/5V (Linear Mode) |
| PWM Frequency | Adjustable 1K/2K/4K/8K/16K |
Adjustable 1K/2K/4K/8K/16K |
1KHz |
| Wires | 14AWG-200mm w/ XT60 Connector | 14AWG-200mm w/ XT60 Connector | 14AWG-200mm w/TAMIYA Connector |
| Size/ Weight | 37.2(L)* 31.9(W)*18.4(H) (without fan) | 36.5(L)* 32(W)*18(H) (without fan) | 36.5(L)*32(W)*18(H) |
| External Program Port | Separate Port Available |
External Program Port Available |
N/A |
| Programming | LED Program card | LED Program card | Jumper Cap |
| Cooling Fan | Without cooling fan | - | |
| Weight* | 70.2g w/ wire and connectors | 58.5g | 39g |
