XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
D1010.5TSeries_2048x2048
D1013.5TSeries_2048x2048
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139
-27%
Hobbywing

XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139

$119.99
$87.99 In Stock Pre-Order Sold out
SKU: 30401137
Color
motor-turn
Notify when available
SKU: 30401137
Categories: All Products, Motors

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Reviews
XeRun D10 PRO DRIFT Brushless Sensored MOTOR [Hobbywing] 30401134 30401135 30401137 30401138 30401139

Bottom line


  • Elegantly designed for drift

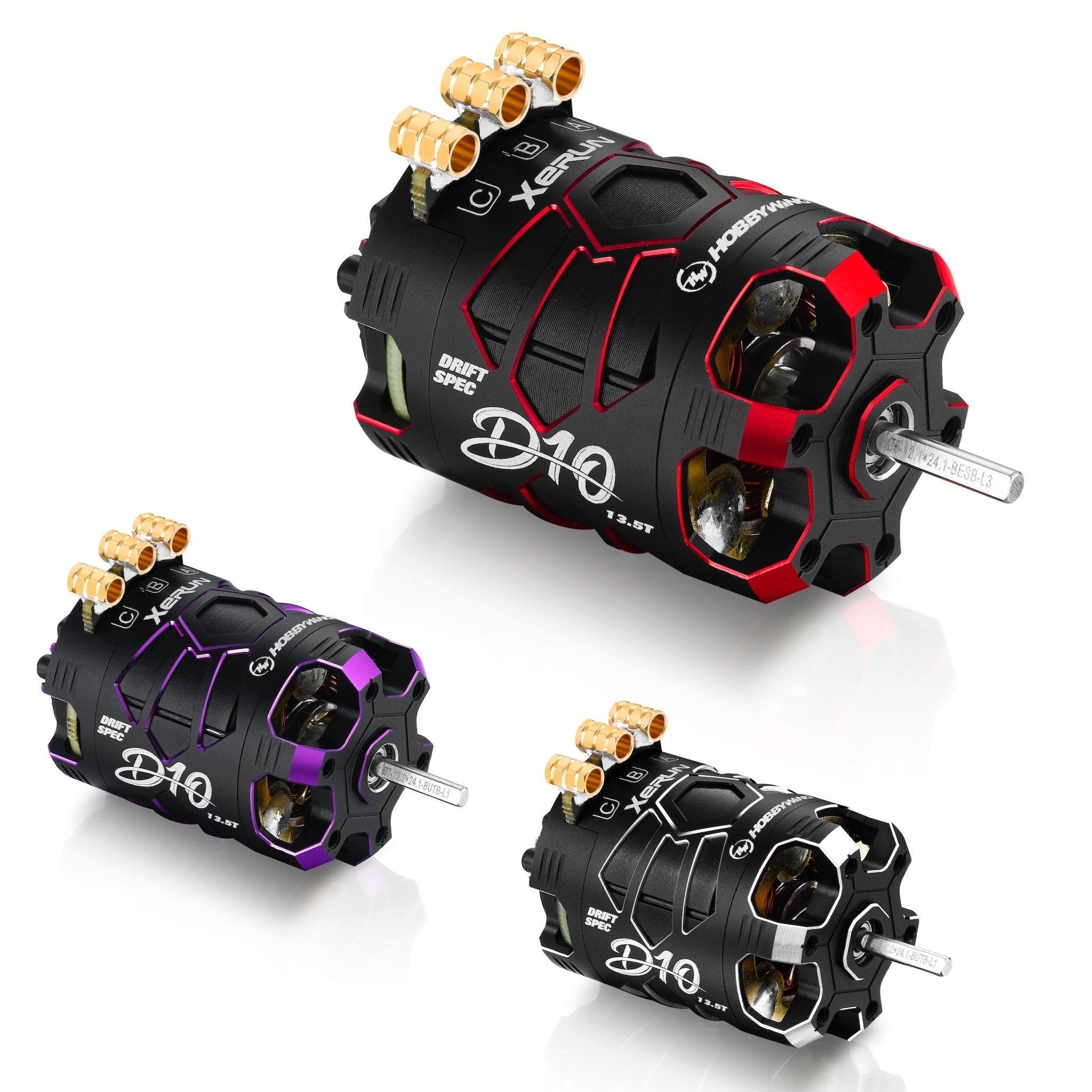

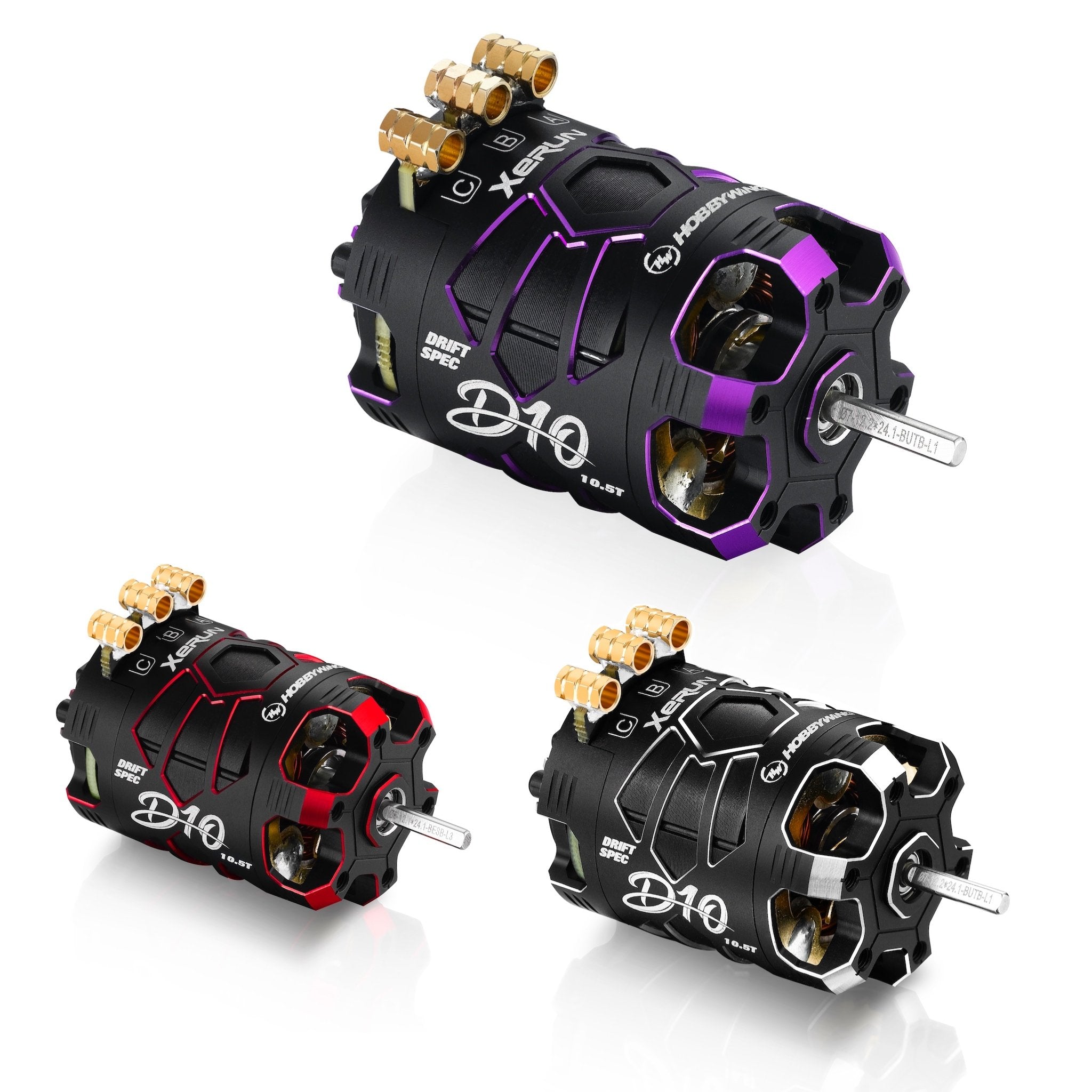

    The Xerun D10 motors provide the ideal colors to perfectly match your drift machines. Available in Black, Red, and Purple.
  • Banana plug-in quick-swap design
    The motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors. 3.5mm male head is also included in the XD10 ESC.
  • New stator designed for drift applications
    The new motor stator is optimized for drift and improves motor efficiency in drift applications. Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability while
    greatly improves motor efficiency.
  • Lightweight
    The 10.5T motor weighs approximately 158g while the 13.5T is at 165g (including 3 gold insert weights). The lightweight motor allows user to easily tweak their weight bias on their car.
  • Equipped with fan rotor,
    Providing great heat dissipation, power the special-shaped gold fan on the rotor heats the motor while making a pleasant sound, especially when Turbo is turned on.
  • Best paired with XD10 PRO ESC

Specifications


  • 1/10th Drift car, 2S Lipo
  • 2 POLE Super High-Efficiency brushless motor
  • Diameter/Length (mm): Φ=35.7mm(1.41") L=52.6mm(2.07")
  • Shaft Diameter/ Length (mm): Φ=3.175mm(0.125") L=15.0mm(0.591")















































ID XERUN D10 10.5T Motor XERUN D10 13.5T Motor
 KV / Lipo cells 4600kv / 2-3S 2900kv /2-3S
Type 1/10th, Brushless Sensored 1/10th, Brushless Sensored
Applications 1/10th Drift car
Sensorless or Sensored brushless Motors
Same
Size O.D mm 35.7 35.7
Length mm 52.6 52.6
Stock Rotor Φ7-12.2*24.1-BUT*-L1 Φ5-12.1*24.1-BES*-L3
Weight (g) 157 165



10.5T Rotor:



























p/n Color Stock Rotor
30401134 Stealth Φ7-12.2*24.1-BUT*-L1
30401135 Passion Φ7-12.2*24.1-BUT*-L1
30401136 Spirit Φ7-12.2*24.1-BUT*-L1

13.5T Rotor:



























p/n Color Stock Rotor
30401137 Stealth Φ5-12.1*24.1-BES*-L3
30401138 Passion Φ5-12.1*24.1-BES*-L3
30401139 Spirit Φ5-12.1*24.1-BES*-L3




IMPORTANT NOTES:
  • The D10 motors provide a wide range of adjustable mechanical timings, the following are the methods & principles you can follow when adjusting the timing.
  • You can adjust the motor timing after unfastening the screw on the rear end-plate. Please adjust the timing as needed according to the mark (/white lines) at the rear end of the motor and fasten the screw after the adjustment. For obtaining optimal performance, you can change the output range and characteristics of your power system by adjusting the motor timing.
  • Increasing the timing can increase the motor speed (/RPM), while that also increases the motor temperature and reduces the efficiency. A high(er) timing usually requires a high(er) ratio.
  • Please ensure your ESC is properly programmed before setting the motor timing. For detailed information about ESC programming, please refer to the user manual of the ESC.
  • After the timing adjustment, please ensure that your motor will not get overheat after running a whole pack (i.e. LiPo). You can get the information about the motor temperature via a infra-red temperature gun. If the temperature is too high, please let the motor cool down first and then test again. If the temperature is still too high, then please reduce the timing or increase the FDR (that is to replace the pinion gear with fewer teeth or spur gear with more teeth.).


Cautions:


Warranty terms and conditions, please review  here
To avoid short circuits, ensure that all wires and joints must be well insulated before connecting the motor to related devices.
  • The M3 screws with a length (no longer than 7mm) are needed when mounting the motor onto your vehicle.
  • Please pay attention to the relevant marks (on the ESC) when soldering/connecting those output wires to the motor and make sure that you will strictly follow the wiring order (between the ESC & themotor) of “A-A, B-B, and C-C”.
  • Please ensure the sensor cable is clean and undamaged when you’re using a sensor ESC. You need to pay attention to the two connectors on the cable when connecting the ESC to the motor.
  • Re-check all the connections between the ESC & the motor and ensure that they are all correct before turning on the ESC.
