Quicrun 10BL60 (60A) ESC Speed Controller (8 Step Timing) [Hobbywing] 30108000 3650
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Reviews

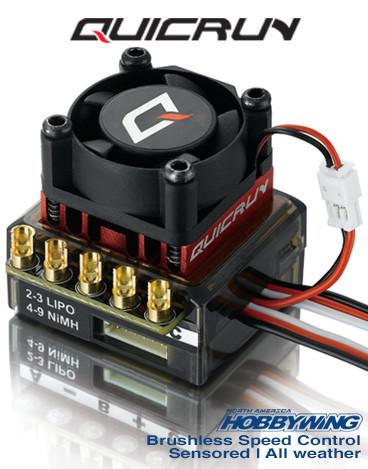

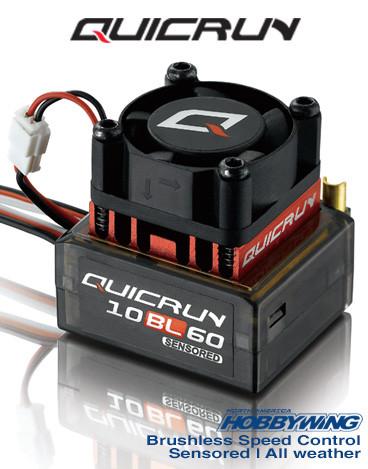

QuickRun 10BL60 (60A) ESC Speed Controller [Hobbywing]
BEST SELLER
*This is the best bang for the buck ESC. Handles your everyday drift needs. If you start doing motor and turbo tuning, this ESC will seem more basic. But if you want a solid working ESC that doesn't break the bank, this one will do the job.
Dust-proof for all-weather races.
1/10 & 1/12 On-road / Off-road / F1 / Drift car race
Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
Specification:
- High performance but low price- users can own this reliable race-ready ESC at an affordable cost.
- Compact size, suitable for various car chassis.
- Auto identification system can recognize sensored or sensorless brushless motors automatically.
- Smooth operation and plentiful adjustment options. Suitable for most kinds of competitions.
- 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential.
- Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
- 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit various of cars, tires and tracks.
- Multiple protections: Low voltage cut-off protection for LiPo or NiMH battery / Over-heating protection / Throttle signal loss protection / Motor Lock-up protection.
- One-button sets the ESC. Easily reset all parameters to factory default settings.
- Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
Model / SKU
|
QUICRUN-10BL60 Sensored / 30108000 |
Cont./Peak Current/ Resistance
|
60A/380A/0.0008Ω |
Motor Type Supported | Sensored / Sensorless Brushless Motor |
Car Applicable | 1:10 On-road/Off-road/Buggy/Monster |
Motor Limit |
For 2S LiPo or 4-6 cell NiMH: ≥8.5T(1/10 On-road), ≥13.5T(1/10 Off-road) *Note 1For 3S LiPo or 8-9 cell NiMH: ≥13.5T(1/10 On-road), ≥17.5T(1/10 Off-road) *Note 1 |
Battery |
4-9 cell NiMH, 2-3S LiPo
|
BEC Output | 6V/2A (Linear Mode) |
Size/ Weight | 33mm(L)*28mm(W)*31.5mm(H, with cooling fan) 59g (with wires, without cooling Fan) |
External Program Port | Available |
