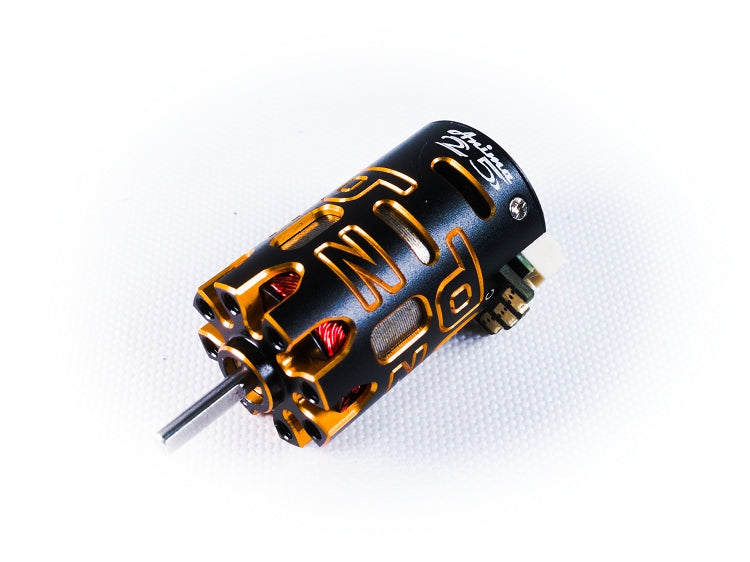

Mini-Z V6 Anima Sensored Brushless Motor 2500kv [PN Racing] 176625

PNWC 2026 Official Handout Motor for GTLM Super Stock and F1 Class

Description:

Upgrade your 1/28 RC car chassis with our latest specification 1525 Sensored Brushless Motor.

Engineered for precision and consistency, this 2500kV motor features a robust CNC-machined 6061 aluminum case for superior heat dissipation and durability.

Internally, the motor uses premium Japanese ball bearings for ultra-smooth operation and reduced friction.

We utilize high-temperature, high-quality copper wiring to maintain peak performance even under competitive racing stress. The standard 2mm shaft ensures compatibility with a wide range of pinions.

Key Features:

Precision Build: CNC 6061 Aluminum Case.

Smooth Operation: Equipped with premium Japan Ball Bearings.

Reliability: High-temperature, high-quality wiring.

Compatibility: Standard 2mm shaft diameter.

Highly Recommended ESC Setting: TIMING max 5, TURBO Zero.

The motor temperature should not exceed 45 degrees; if it is high, your settings or gear ratio are too high.

Specifications:

KV Rating: 2500kV

Timing: 30 degrees (+/- 10)

Size: 1525 (15mm x 25mm)

Type: Brushless Sensored

Shaft Diameter: 2mm
