MB-1 MAGIC BOX Bluetooth Programmer for Gyro and Servo [AGFRC] MB1

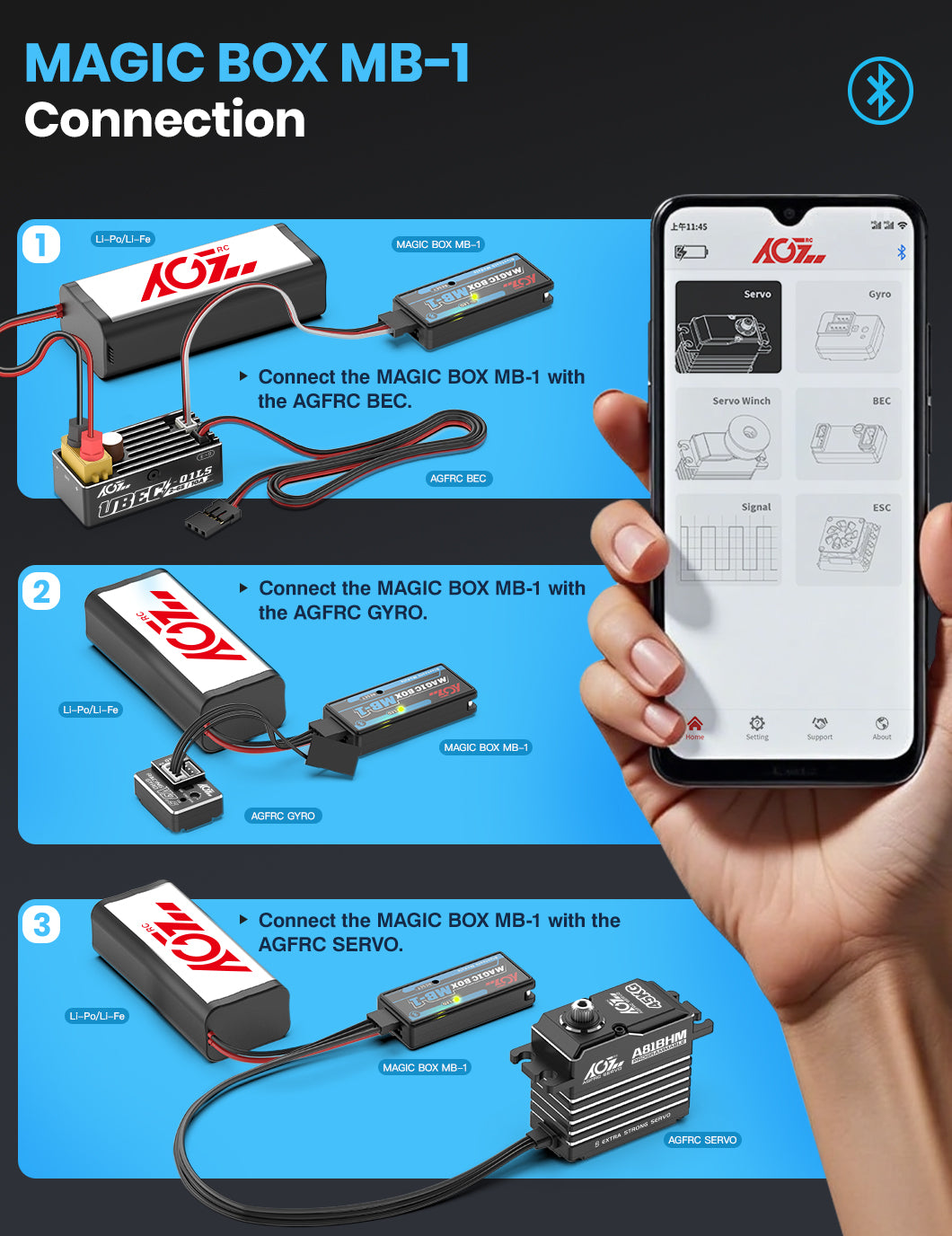

MB-1 is a Bluetooth module from AGFRC company, which needs to be used in conjunction with the APP "AGFRC LINK". Currently, it supports parameter tuning for the following products under AGF:

1. AGF Programmable Servo

2. AGF Programmable Winch Servo

3. AGF Programmable Gyro

4. AGF Programmable BEC

Specifications:

Size: 43.2 * 19.2 * 9 mm

Weight: 6.2g

Voltage supply: DC 5-8.4V

Output voltage and current: DC 5-8V / 0-3A

Static current consumption: Less than 50mA

⚠️Warning: MAGIC BOX MB-1 power supply cannot exceed the maximum power supply voltage, exceeding it will damage the connected products!

Remark: The gyroscope and electronic tuning module currently do not support adjustment, magic box MB-1 will continue to be updated in the fulture, please stay tuned…
