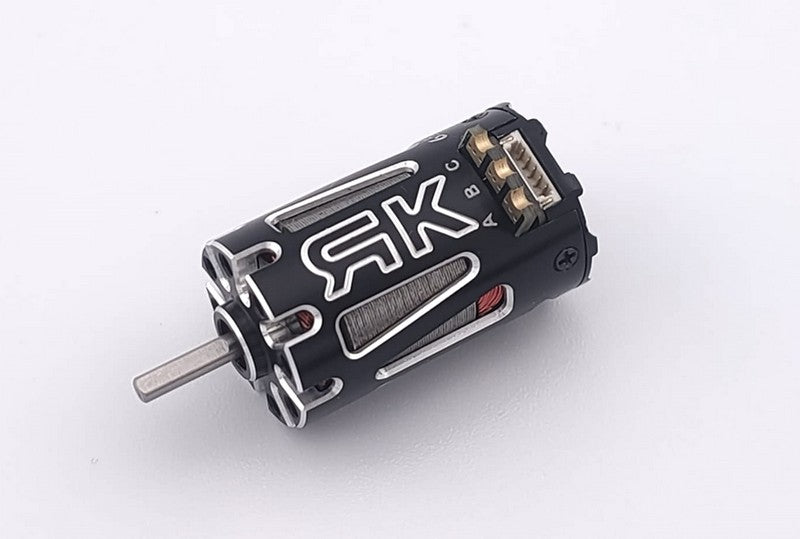

Marka Racing V3 SPEC SENSORED Brushless Motor 2500kv ( 1-28 ) [Marka] MZR-2500-V3

Discover the new Marka Racing sensor motor: the ultimate in power and precision for your 1:28 racing!
Designed with an innovative layout, featuring strategic openings to ensure optimal cooling.
Thanks to its high mechanical advance, the Marka Racing delivers explosive performance: to get the most out of it,
configure your ESC following these guidelines:
- With a 12T pinion and 53T spur gear, set the ESC with a "5°" BOOST and a maximum TURBO of "5°".
- With a 14T pinion and 53T spur gear, ideal settings are "10°" BOOST and a maximum TURBO of "5°".

Keep an eye on your motor temperature.
High mechanical advance results in rapid accelerations and high top speeds.

***Remember, to maintain top performance, never a Exceed 20° between TIMING and TURBO combined!***

***This motor is built to pass all non-sensored Kv checking events with a 2800Kv limit.
You will find the range of the Kv, un-sensored between ~2680 and ~2770 Kv.

By moving the internal shim towards the top or bottom of the rotor, is possible to change the range of about 2640-2800Kv
