DSM DSM2 Compatible 4 Channel MICRO Tower Antenna Receiver w GYRO + TRANSPONDER For 1-24 1-28 (CASE-LESS) [MXO RACING] RXC52-DG&TP

DSM DSM2 Compatible 4 Channel MICRO Tower Antenna Receiver w GYRO + TRANSPONDER For 1-24 1-28 (CASE-LESS) [MXO RACING] RXC52-DG&TP

✅ Compatible SPEKTRUM Transmitters:
DX2E, DX3C, DX4S, DX5C, DX5-Pro, DX5 Rugged

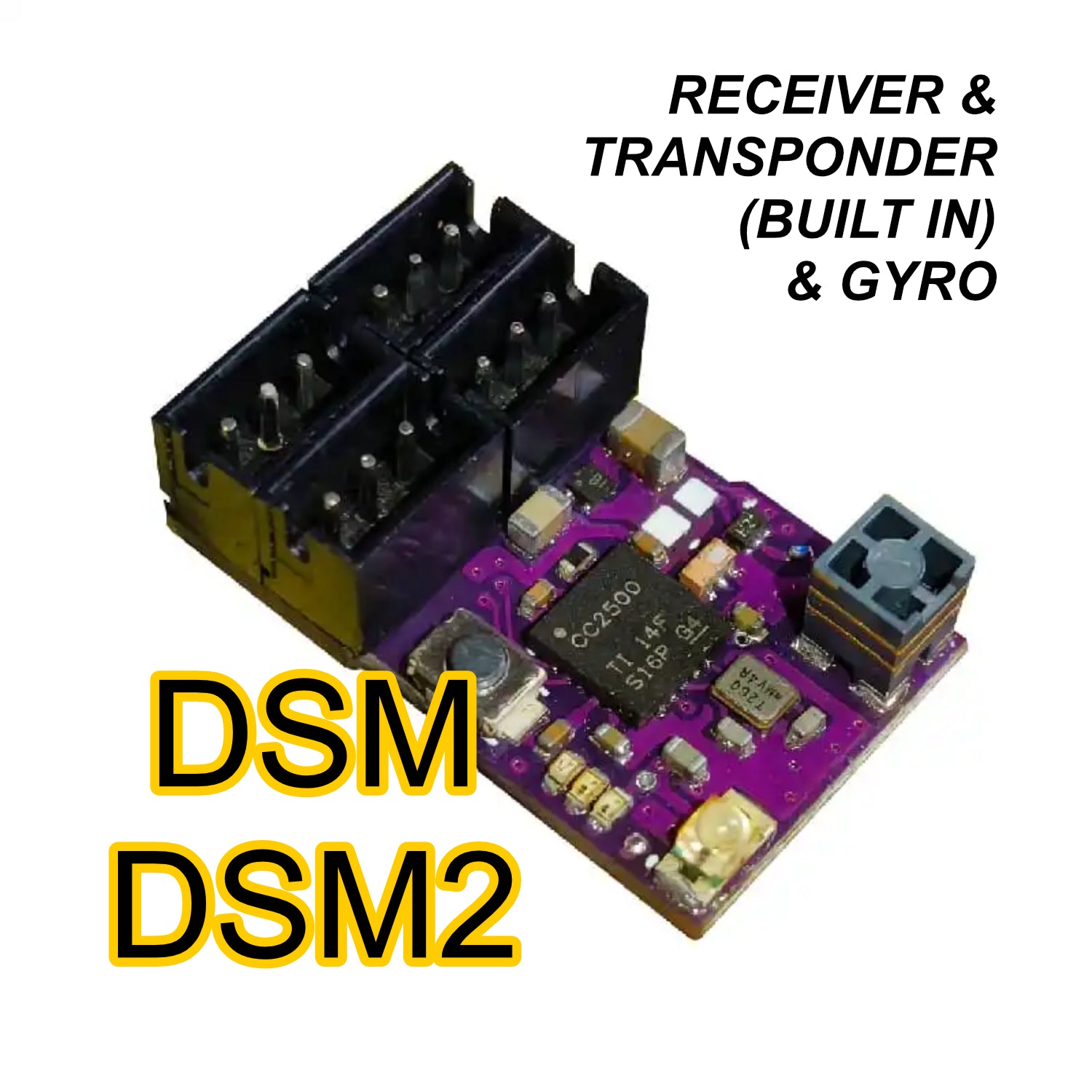

MXO-RACING RXC52-DG&TP Miniature Surface Receiver with Transponder & Multi-Gyro
User Manual

Thank you for choosing MXO-RACING products. Please read this document carefully before use.

Product Overview
The RXC52-DG&TP is a miniature antennaless surface receiver integrated with a Transponder and Multi-Gyro. It is compatible with SPEKTRUM DSM/DSM2 protocols and is designed for high-speed, low-latency applications such as 1:24/1:28 RC cars or MINIZ platforms.

This receiver features adaptive output speed (up to 5.5ms) and includes a built-in high-gain LNA for extended working range and fast response time.

Key Features
Size: 19.6 × 12.0 × 7.0 mm

Weight: 1.35 g

Operating Voltage: 3.3 ~ 8.5 V

Protocol: Compatible with DSM/DSM2

Built-in LNA for improved distance and responsiveness

Built-in Transponder with editable personal ID (range: 1 ~ 16,777,215)

Parallel high-speed output

Adaptive output speed (e.g., 5.5ms with DX4S, 8.25ms with DX5C)

Built-in Multi-Gyro (only in RXC52-DG&TP)

Supports online firmware upgrade

The first micro surface rx with an antenna-less version that integrates a transponder with editable personal ID number.
After using this receiver, users no longer need to install traditional bulky transponders on 1/28~1/24 RC cars.
Users can also modify the transponder's personal ID number easily and unlimited times.
When the transponder is not in use, the user can turn off the transponder on the receiver through the GUI (TP_LED is off )

No need to add a transponder and make your car a mess or heavy, this micro receiver has the transponder built into it!
Works with EASYLAP.

*PLEASE CHECK WHAT PROTOCOLS YOUR TRANSMITTER CAN HANDLE!
