4CH Micro Futaba Receiver T-FHSS SR Tower Antenna for 1-28 MINI-Z 1-24 [LOCO RC] LCRC8026

This is the first Futaba T-FHSS compatible micro surface receiver in the world. It offers full 4-channel support in ultra-light weight and micro size. It is ideal for micro racing cars.

Features:

1. Futaba 2.4GHz T-FHSS SR compatible
2. High performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (19mm x12mm)

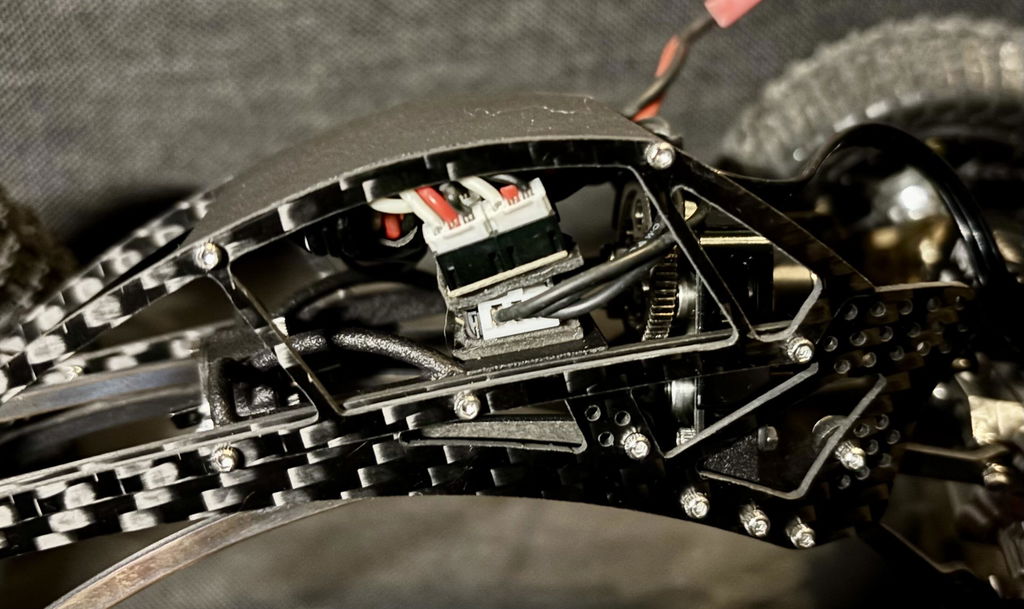

5. Ideal for any micro rc racing chassis
6. Added failsafe function
7. Operating Voltage 3.7V - 8.4V:
8. Weight: 2g

Compatible Transmitters:

10PX

7PX/7PXR/4PM/7XC

4PX/4PXR/4PV/3PV/4PLS/4PL/4GRS

Package Includes:

1 x Receiver

2 x 1.5mm 3P JST plug with cable

Link Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1-Place the transmitter and the receiver close to each other within half (0.5) meter.

2-Place the transmitter into the linking mode and turn on the receiver

3-During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.

Normal mode / High Speed mode:

The " Normal mode " accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitters manual to have a pleasant running experience.
