AGILE LUXON Brushless Motor for 1-10 RC CAR - 13.5T 11.5T 10.5T 17.5T 21.5T 9.5T- Produced By ACUVANCE Japan

A sharp design with a simple line configuration that exudes high quality and high combat power.

The machined aluminum case features a unique porous structure and boldly cut cooling holes to achieve high efficiency and cooling performance.

Customizable body color

AGILE's exclusive Transform (TF) jacket, which allows you to freely customize the coloring of the upper/bottom case and end bell, is available as an option.
You can create originality that matches the installed chassis and driver's preferences.

Equipped with original new [Tri-Blade] machined from aluminum

The rotor blade that generates airflow inside the motor has been made larger and lighter.
It has both higher cooling capacity and rotational performance.

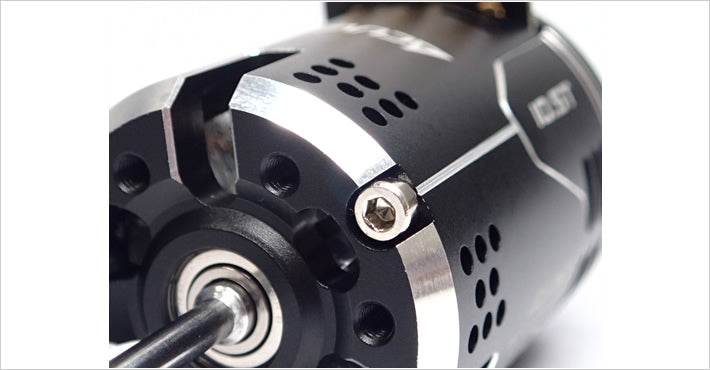

Adoption of large diameter bearings

A large diameter type (outer diameter 12.700mm / inner diameter 4.762mm) is used for the front bearing to improve rotational stability and durability.

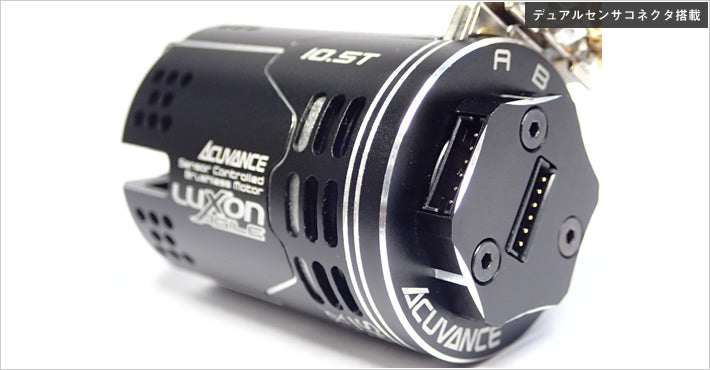

Adopts dual sensor connector

Adopts a dual sensor connector system with two sensor connectors.
By placing the connectors in different directions, the degree of freedom in layout has been increased.

Expanding the advance angle adjustment range using the slip WAY method

Expanded the advance angle adjustment range to 55°.
Achieved even higher speed.

Shortening motor case length

Motor case length shortened by 1.5mm (compared to our company).
The degree of freedom of vehicle installation has been increased.

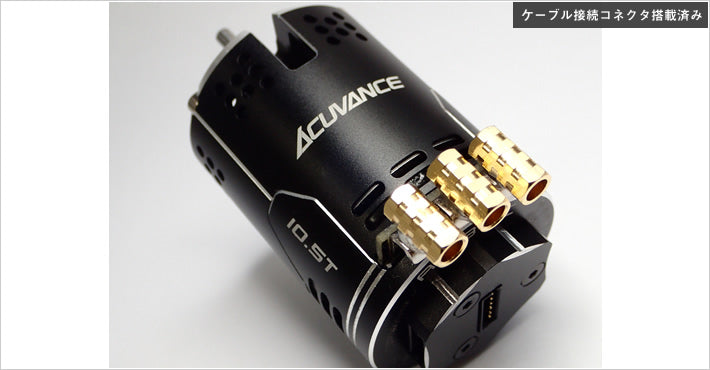

Terminal connector installed

A connector (OP-87513) is already installed at the factory.
This eliminates the need for soldering work on the terminals, which can cause failures, and reduces blowouts caused by heat conduction.

Adopts hexagonal type for all screws

We have adopted hexagonal type screws, which are the most frequently used when assembling RC cars
