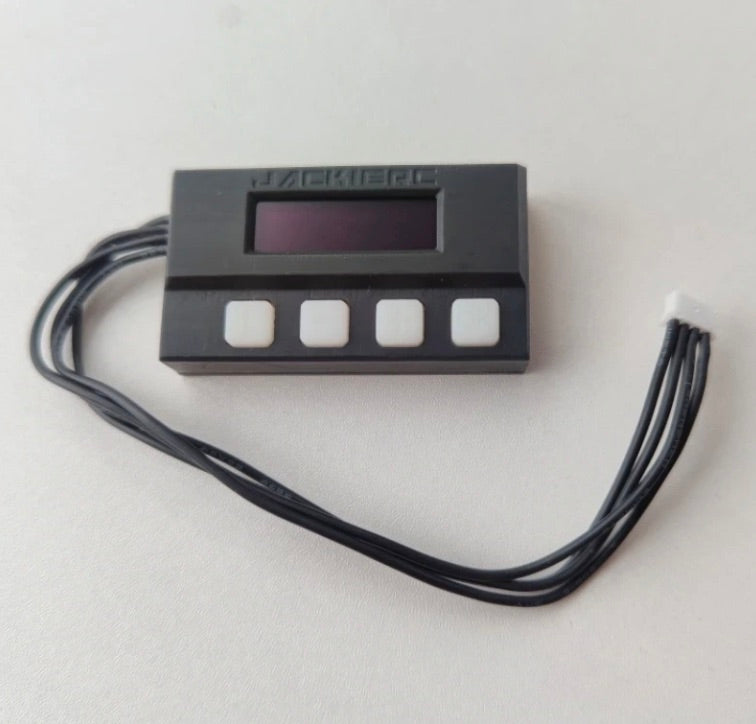

ICS Programmer for Kyosho ICS Mini-Z MR03 EVO MR04 EVO2 (stand alone programmer box) [JACKIERC]
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Reviews
*this does not work on MR04 readysets, only MR04 EVO
This programmer is designed to be used with AAA Batteries no more than 1.5vdc per battery.
6.0vdc operation only if you are using higher voltage LIPO or other voltages, it will short out the programmer
Our prayers have been answered! No more fumbling around with a laptop and some windows updates!

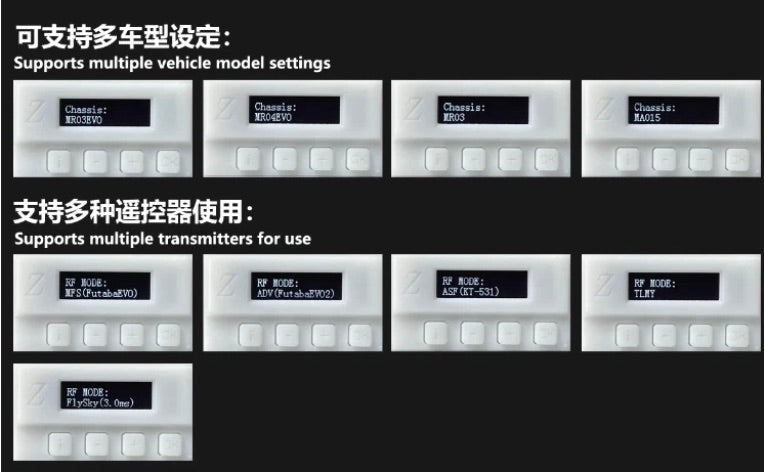

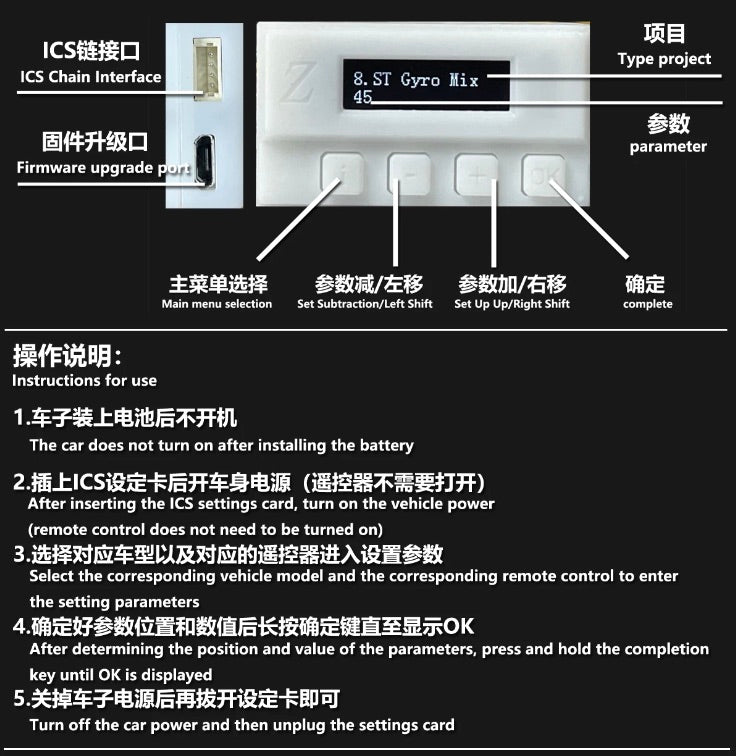

This standalone programmer lets you change all the settings on the fly! You plug it in and load it into programming mode at your finger tips. You can adjust all the settings you normally need to access by using the ICS programmer that Kyosho doesn't even make anymore.

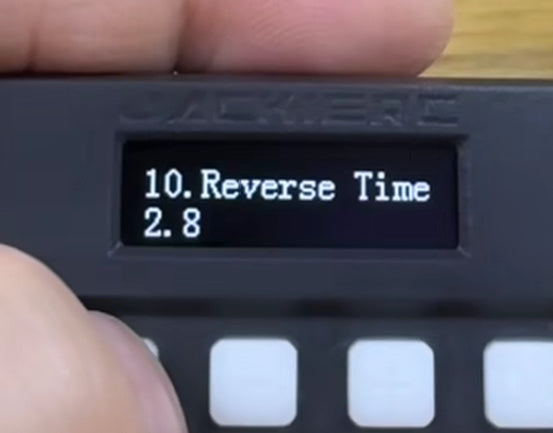

This is a must have! You can change your reverse delay and even steering and punch settings!
An amazing game changer for the MINI-Z world!
Update 3/24/2025:
v2.7 firmware update:
https://drive.google.com/file/d/1fRkMt1d1S-YaBUjH8emIHpEE1Ra0f4PT/view?usp=drive_link
Notice:
The new firmware for the programming card has arrived!
Due to the improvement of the Mini-Z EVO2 ICS system parameters and the addition of individual items, the V25 programming card is also updated synchronously, resulting in faster speed and more stable braking.
Here is the compressed file. After decompression, you will see the BIN file. Then connect the programming card to the computer through the USB port and see the mobile hard drive (you can format it if prompted). After pasting the latest BIN file to the hard drive and pressing OK on the programming card, you will be prompted to complete it.
Note: If it cannot be recognized, simply replace the data cable.
Update 5/17/2024:
v2.6 firmware update:
The V25 ICS configuration card has been upgraded again! This upgrade is a new system update for MINI-Z EVO2 (the other systems are still the same), version number is V2.6, after KYOSHO upgraded the EVO2 system, the speed of MR-04 EVO2 will be significantly improved, the following is the latest update document.
V2.6.zip ←←←←←←←
The operation upgrade steps are as follows:
- Download V2.6 firmware to your computer and extract the file name suffix BIN
- Through the USB digital reference line link to set the card's micro interface computer display U disk and open
- Copy the BIN file to the settings folder for overwriting
- Long press the OK key of the set card until finished
(Note; If the digital line is connected to the computer, it does not display the U disk or does not respond, indicating that the digital line needs to be replaced)
