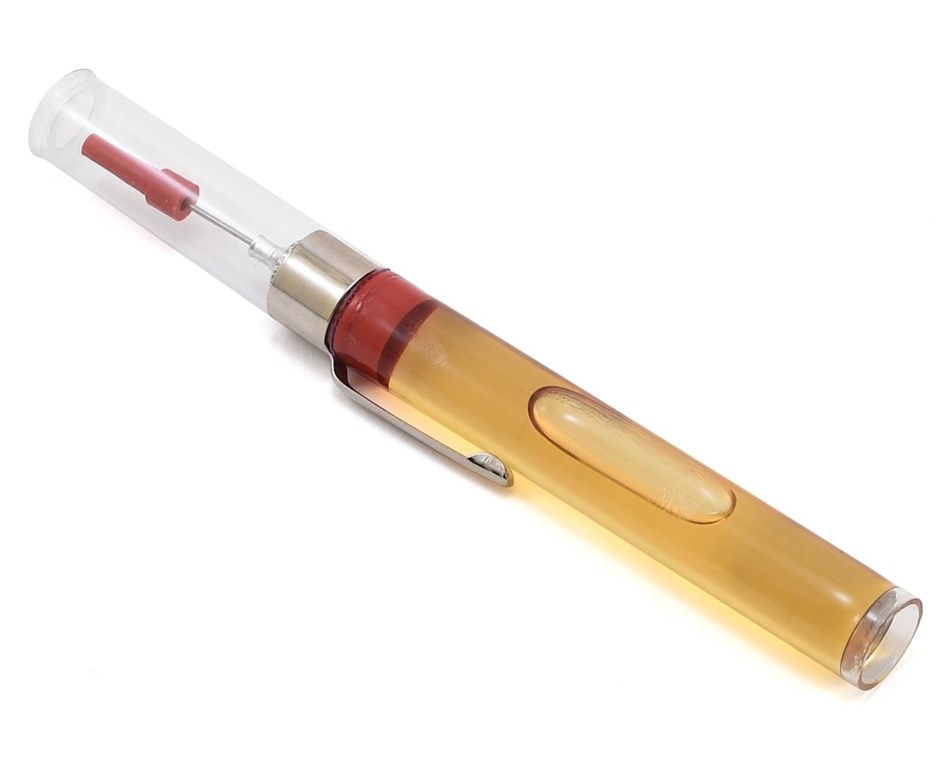

CRC Spintech Bearing Oil [CRC] CLN4060

CRC Spintech Bearing Oil [CRC] 4060

Creating a barrier between sliding contact surfaces
Protecting surfaces from corrosion
Sealing against contaminants
Providing heat transference (in the case of oil lubricant)

Lubricants take the form of either oil or grease. Oil lubricants are most common in high speed, high-temperature applications that need heat transfer away from working bearing surfaces. Bearing oils are either a natural mineral oil with additives to prevent rust and oxidation or a synthetic oil. In synthetic oils the base is usually polyalphaolefins (PAO), polyalkylene glycols (PAG) and esters. Although similar, synthetic and mineral oils offer different properties and are not interchangeable. Mineral oils are the more common of the two.

The most important characteristic when specifying oil for a bearing is viscosity. Viscosity is a measure of a fluid’s internal friction or resistance to flow. High-viscosity fluids are thicker like honey; low-viscosity fluids are thinner like water. Engineers express fluid resistance to flow in Saybolt Universal Seconds (SUS) and centistokes (mm2/sec, cSt). The difference in viscosity at different temperatures is the viscosity index (VI). An oil’s viscosity is correlative to the film thickness it can create. This thickness is crucial to the separation of the rolling and sliding elements in a bearing. Bearings in some applications use oil, but grease is the lubricant of choice for 80 to 90% of bearings.
Grease consists of about 85% mineral or synthetic oil with thickeners rounding out the rest of the grease volume.

The thickeners are usually lithium, calcium or sodium-based metallic soaps. Formulations for higher-temperature applications often include polyurea. The higher viscosity of grease helps contain it within the bearing envelope. The most important considerations when choosing a grease are the base oil viscosity, rust-inhibiting capabilities, operating temperature range and load-carrying capabilities.
