AVALON Rotary Damper Travel Limiter and Buffer Unit [Azada] AZ8825T

For Avalon Rotary damper

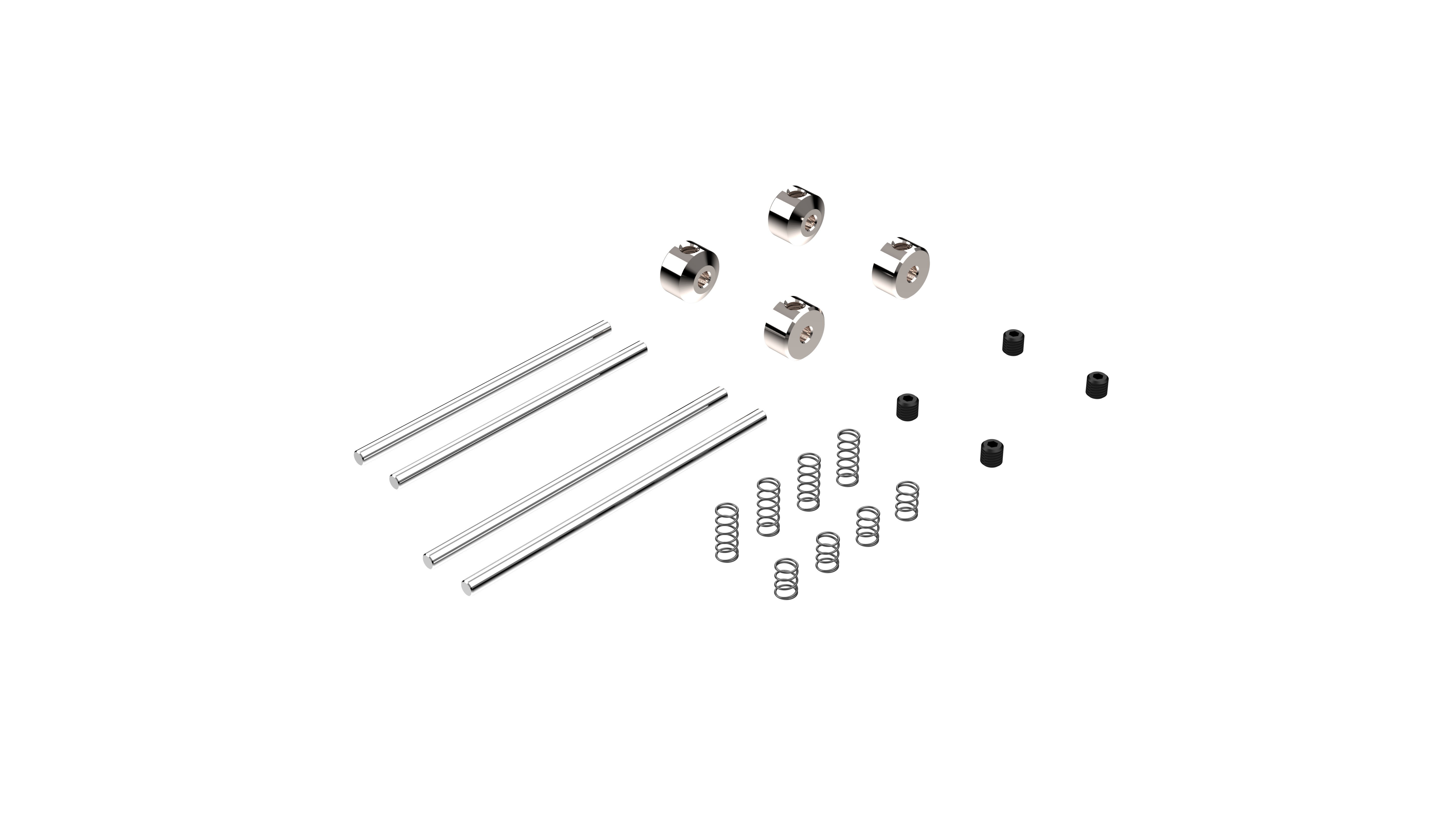

●Product Contents:

   ○TC4 Ti-Alloy Limiters   x4
   ○1.5 - 30mm Pin   x2
   ○1.5 - 35mm Pin   x2
   ○M2*2 Set Screw   x4   (+1 Spare)
   ○Long Spring   x4   (+4 Spare)
   ○Short Spring   x4   (+4 Spare)

●Installation Guide

   ○Select spring specifications based on your setup requirements:

   ○Long Springs: Used for initial stage elastic compensation of the damper.

   ○Short Springs: Used for end-stroke travel buffering.

●Option A:Long Spring (Initial Adjust)

   ○Adjust Limiter: Fine-tunes initial compensation.

   ○Sets Preload: Optimizes system preload parameters.

●Option B:Short Spring (End-Stroke)

   ○Initial Feel: No change to original initial elasticity.

   ○Max Travel: Adjusts the maximum stroke limit.
