Mini28-1_800x
-17%
Hobbywing

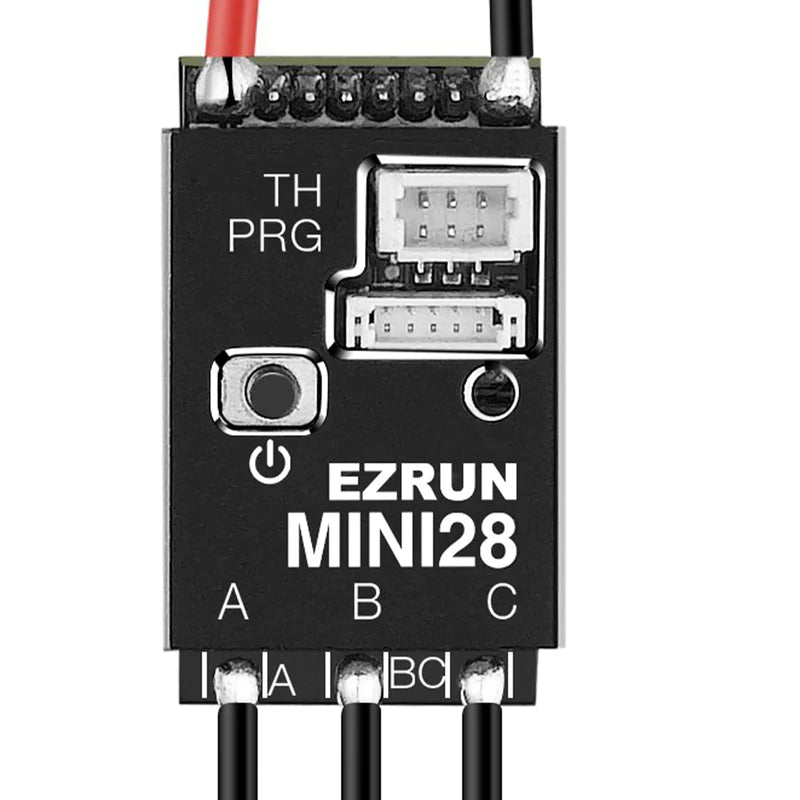

1-28 1-24 EZRUN Mini28 ESC [Hobbywing] 30101300

$119.99
$99.99 In Stock Pre-Order Sold out
SKU: 30101300
Notify when available
SKU: 30101300
Categories: 1/28 Electronics, 1/28 Scale (RWD DRIFT), All Products, Mini-Z (1/28), Mini-Z Electronics

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Reviews

Specifications

Product Title EZRUN Mini28 ESC
Part number 30101300
Technology Brushless Sensored
Waterproof No
Cont./Peak Current 30A/80A
Input Voltage 2S Lipo
BEC Output 6V/7.4V @Max 3.5A
Wires & Connectors Input Wires: 20AWG-55mm *
Output Wires: 22AWG-80mm *
Size & Weight 22.7x14.2x11.8mm | 5g (without wires)
Applications Motor: 1626 Size Motors
Vehicle: 1/28th&1/27th
ESC Programming LCD G2 Program Box
OTA Programmer
Throttle Wire
Firmware Upgrade Supported
Manual download > User Manaual Ezrun Mini28th (PDF)
Product Brochure > Ezrun Mini28 Leaflet-en (PDF)

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Great flexibility and setup options

Great flexibility and setup options. Cool appearance.

R
R.
Works great right out of the box

Works great right out of the box. Only dislike is the sensor cable for the motor is a little short and rubs on suspension component, it may need to be approximately 5mm longer and have a protective sleeve.

D
D.
Great item at the Best Price

Great item at the Best Price.
